SPIROMETRY, LUNG FUNCTION TESTS, and
the CONTROL OF RESPIRATION
Wet Spirometer
Figure
from: www.gen.umn.edu/.../
spirometerlab.htm

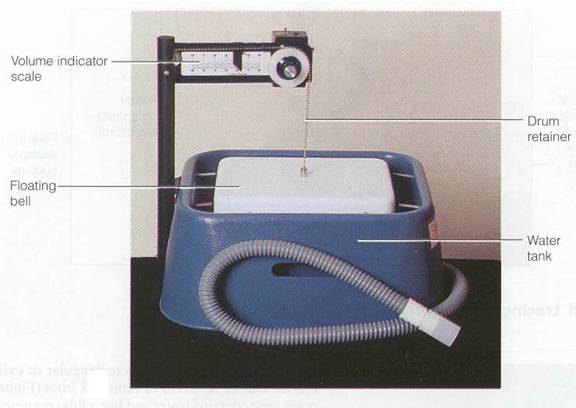

A wet spirometer is a plastic bell
floating in water, so no air can enter or leave -- except the air you send in
or out through a tube that empties into the bell from below. When you put air
in, the bell floats higher and the amount of air that you put in can be measured
by the difference in the level of the bell.
To measure a normal breath:
1. Put the noseclip on
2. Put a clean mouthpiece on the valve assembly
3. Put the mouthpiece in your mouth and take a few breaths,
so you will get used to breathing with it.
4. Which end of the valve assembly is air coming out of when
you exhale? Connect that end of the valve assembly to the spirometer
hose, so that the air you exhale goes into the spirometer.
5. Read the volume indicator scale after each breath, to see
how much you exhaled.
Use the wet spirometer
to measure your subject’s Tidal Volume, Expiratory Reserve Volume, and Vital
Capacity.
TIDAL
VOLUME - breath in and out normally. Record
the change in volume in the bell with each breath.
Subject |
Trial 1 Tidal Volume (L) |
Trial 2 Tidal Volume (L) |
Trial 3 Tidal Volume (L) |
Average Tidal Volume (L) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EXPIRATORY
RESERVE - breath in and out normally. On the
next breath exhale, record the bell volume, and then exhale as much more as you
can. This is the expiratory reserve volume.
Subject |
Trial 1 Expiratory Reserve (L) |
Trial 2 Expiratory Reserve (L) |
Trial 3 Expiratory Reserve (L) |
Average Expiratory Reserve (L) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VITAL
CAPACITY - Inhale as much as you possibly can
and exhale as much and as fast as you can (like blowing out the candles on a
birthday cake).
Subject |
Trial 1 Vital Capacity (L) |
Trial 2 Vital Capacity (L) |
Trial 3 Vital Capacity (L) |
Average Vital Capacity (L) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Minute
Ventilation is the amount of air you move into
and out of your lungs in one minute. There are basically two ways of measuring
this; you can calculate it from tidal volume and respiration rate, or you can
collect air and measure its volume.
***Note: your subject’s average tidal volume is in Liters,
you will need to convert the tidal volume to mL before you calculate minute
ventilation.***
Using the tidal volume you measured (mL/breath) and the
subject’s respiratory rate (breaths/min), calculate your subject's minute
ventilation (mL/min). You will need to
measure your subject’s respiratory rate by counting her breaths.
Subject |
Average Tidal Volume (mL/breath) |
Respiratory Rate (Breaths/min) |
Minute Ventilation (mL/min) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Control of Ventilation
How does your subject know she should breathe?
What factor(s) control breathing? Create a list of things
you think may be the triggers for inhaling and do a literature search to decide
which of them is best supported by evidence. Find actual data from credible
sources! Turn in a brief (2 page) summary of what you found out. Remember to
use proper citation style.
